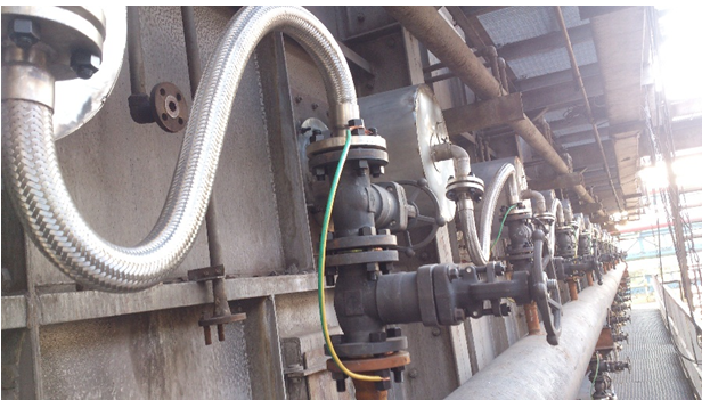

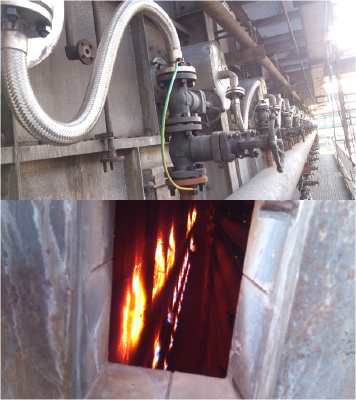

Styrene heating furnace burner:

The furnace type of Styrene Steam heating furnace is a double side radiant vertical tube type square box furnace, the medium is over heated steam, the steam outlet temperature is above 810 degrees, and the temperature of the furnace is >1100. And therefore require very high performance of the material of the tube furnace, the furnace special furnace tube is not a local overheating, control the peak heat intensity of the surface is very important, otherwise it will lead to furnace tube bulging, or even rupture, resulting in significant losses. This paper puts forward higher requirements on the combustion performance and the mechanism of the burner. From combustion and flame shape to be outspoken, flame size and the furnace pipe layout matching, improve the burn off rate, as far as possible the furnace high temperature flue gas radiation heat transfer, improve radiation uniformity. The burner is mostly used for natural air supply, and need to be added to the muffler cover of the air outlet.

Styrene steam heating furnace burner is generally used in flat type gas type, main burning device produces dehydrogenation tail gas or exhaust hydrocarbon (hydrogen content is high, the shortage of energy by the gas pipe networks. There is also a separate burning oil or oil and gas joint situation, which depends on the specific process conditions.
