Hydrogen production, methanol conversion furnace burner:

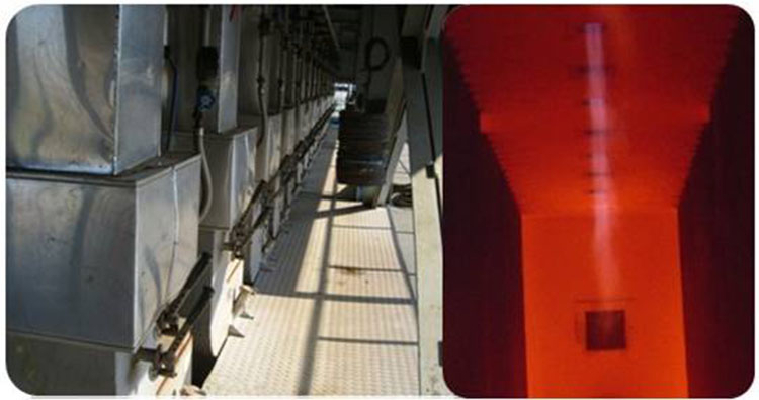

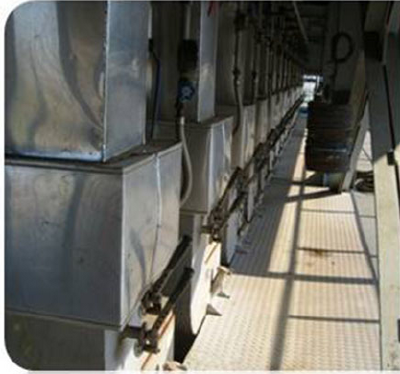

1 hydrogen furnace burner

The reforming furnace of hydrogen production is a double side radiation type square box furnace, which belongs to the reaction furnace, the medium in the tube is converted gas, the temperature of the furnace is >950, and the part is generally divided into two sections. The furnace tube material performance requirements are very high, the furnace in particular requires the furnace tube to be heated evenly not local overheating, or easy to accumulate carbon. The furnace tube is located away from the top of the basic position of the strongest absorption at 3m. Reforming furnace of the burner combustion performance and mechanism put forward higher requirements: flame shape to be outspoken, flame length under the normal load best control between 2.5 to 3.0 meters; and main burning device of byproduct gas desorption gas. Removal attaching gas calorific value is low (2000kcal/m3n) and low pressure (before the burner pressure below 0.02MPa); combustion air preheated air, highest air temperature of some kind of furnace to more than 550 degrees, so the burner have good heat preservation and insulation measures.

2 methanol conversion furnace burner

The methanol reforming furnace is a double side radiation vertical tube type square box furnace, which belongs to the reaction type heating furnace. The medium in the tube is methane, the temperature of the furnace is >950, and the material performance of the furnace is very high. Methanol conversion furnace burner combustion performance have higher requirements: flame shape to be outspoken, burning full, normal load flame length is best controlled at 2.0m. The supply of wind in the form of natural wind or forced air supply.
